Liquid nitrogen point liquid frozen beads series
Home > Product center > Liquid nitrogen point liquid frozen beads series
Product center > Liquid nitrogen point liquid frozen beads series

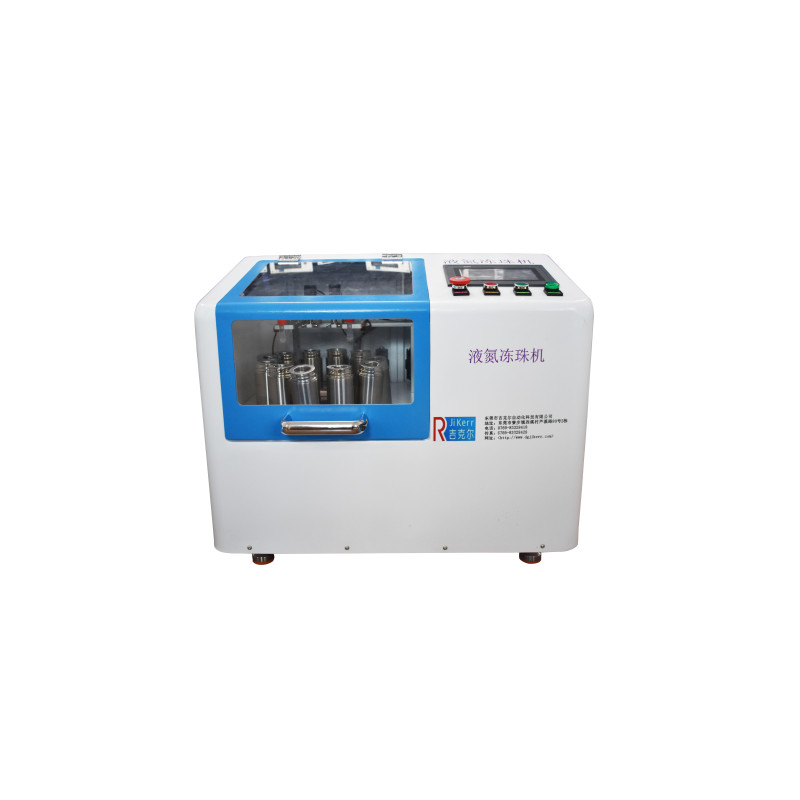

Series of rotary liquid nitrogen freeze-dried drip machine
Product Features:
?Servo turntable mechanism, do not touch beads, do not burst beads, do not connect beads.
?Using 12 liquid nitrogen cups, the liquid nitrogen cups can achieve vacuum insulation.
?Each channel can be clicked to enable/disable.
?Equipped with a high-precision intelligent metering pump to ensure the consistency of the drug beads, and the touch screen of the drip volume can be intelligently adjusted.
?The pump head is installed nearby to reduce pipeline waste.
?Anti-chemical reaction Compatible with most fluids.
Telephone：0769-83328418
Message feedbackPrevious：no more
Detailed introduction
Product Features:
?Servo turntable mechanism, do not touch beads, do not burst beads, do not connect beads.
?Using 12 liquid nitrogen cups, the liquid nitrogen cups can achieve vacuum insulation.
?Each channel can be clicked to enable/disable.
?Equipped with a high-precision intelligent metering pump to ensure the consistency of the drug beads, and the touch screen of the drip volume can be intelligently adjusted.
?The pump head is installed nearby to reduce pipeline waste.
?Anti-chemical reaction Compatible with most fluids.
Technical Parameters
Specification and Model | JKR-YDDZ-12150 |
Turntable parameter | Servo motor drive,Channel 12 |
Drop needle movement stroke | 1-20mm |
Positioning accuracy of turntable | 30′ |
Production efficiency | 30-50PPM |
Bead volume | ≥2.0μl |
Type of metering pump | Straight line type, precision wire rod push-pull ceramic plunger precision metering pump, plunger switch in and out liquid |
Measuring pump valve core | Using alumina ceramic materials |
Power supply | 220V/50HZA ，1.0KW |
Product screen demonstration：
