Liquid nitrogen point liquid frozen beads series
Home > Product center > Liquid nitrogen point liquid frozen beads series
Product center > Liquid nitrogen point liquid frozen beads series

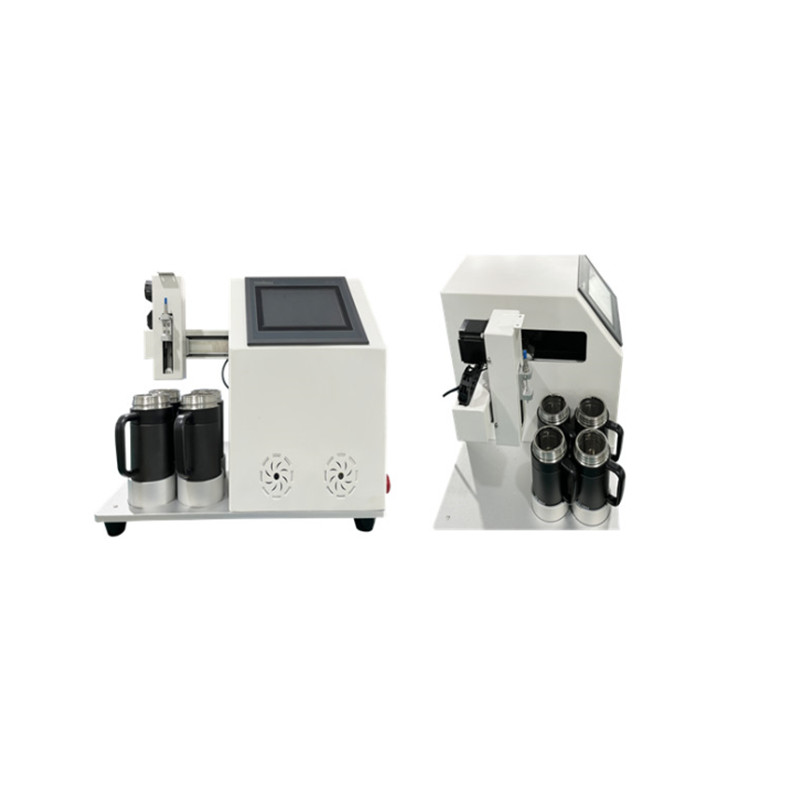

4 station liquid nitrogen freezing bead instrument
Product performance：
l Four-station mechanism, do not touch beads, do not burst beads, do not connect beads.
l Using 4 liquid nitrogen cups, liquid nitrogen cups to achieve vacuum insulation.
lEach channel can be clicked to enable or disable.
lEquipped with high-precision intelligent metering pump to ensure the consistency of medicine beads, drip liquid amount touch screen intelligent adjustment.
lPump head installed nearby to reduce pipe waste.
lChemical reaction resistance compatible with most fluids.
Telephone：0769-83328418
Message feedbackPrevious：Series of rotary liquid nitrogen freeze-dried drip machine
Next：no more
Detailed introduction
Product performance：
l Four-station mechanism, do not touch beads, do not burst beads, do not connect beads.
l Using 4 liquid nitrogen cups, liquid nitrogen cups to achieve vacuum insulation.
lEach channel can be clicked to enable or disable.
lEquipped with high-precision intelligent metering pump to ensure the consistency of medicine beads, drip liquid amount touch screen intelligent adjustment.
lPump head installed nearby to reduce pipe waste.
lChemical reaction resistance compatible with most fluids.
Technical Parameters
Specification and Model | JKR-ZYD-A4G1 |
Liquid nitrogen cup volume
| 90ml |
Drop needle movement stroke | 0-50mm |
Production efficiency | 40-50PPM |
Bead volume | ≥2.0μl |
Type of metering pump | Straight line type, precision wire rod push-pull ceramic plunger precision metering pump, plunger switch in and out liquid |
Measuring pump valve core | Using alumina ceramic materials |
Power supply | 220V/50HZA ，1.0KW |
Note: the above models are close to our large shipments of the representative model products, welcome to order customized! For the 2D,3D installation size diagram, please contact our customer, sales or website for download.
