Micro upgrade ceramic metering pump series
Home > Product center > Micro upgrade ceramic metering pump series
Product center > Micro upgrade ceramic metering pump series

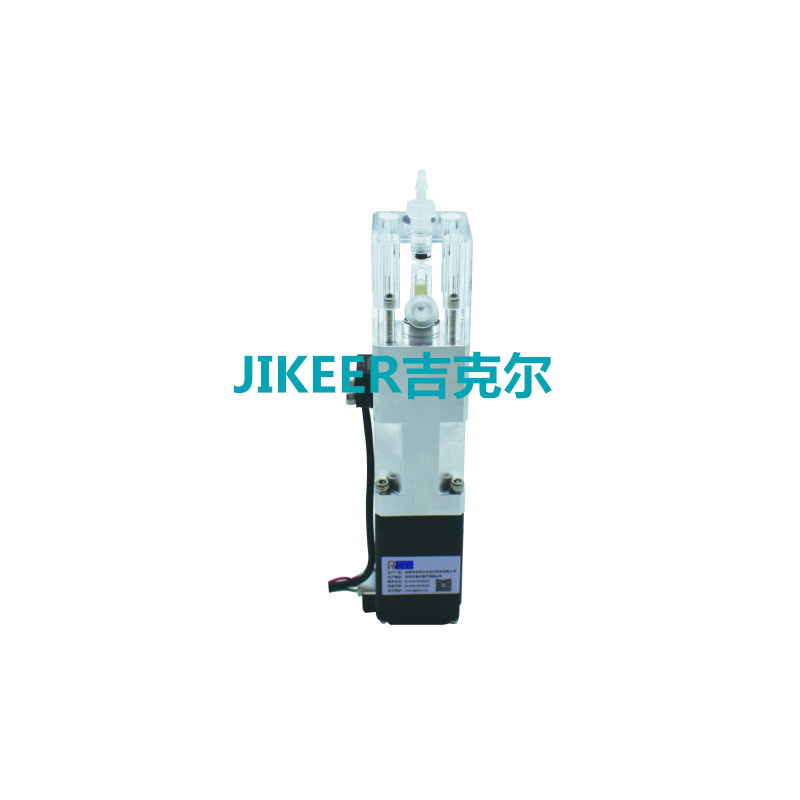

Micro-plunger pump series
Product performance:
l Compact structure, small volume, high precision, corrosion resistance and high temperature resistance.
l Easy disassembly and installation, the valve body is made of perspective material, convenient observation.
l Integrated wire rod stepping motor, high performance, long life, high strength repeated operation.
l The precision ceramic valve reciprocates and measures the size by adjusting the stroke length.
l No dynamic seals, no vulnerable parts, zero maintenance and maintenance cost.
l Anti-chemical reactions are compatible with most fluids.
Telephone：0769-83328418
Message feedbackPrevious：Micro type quantitative valve series
Next：no more
Detailed introduction
Extensive application: precision and quantitative filling of biological preparations, pharmaceutical products, reagents and other liquids.
Product performance:
l Compact structure, small volume, high precision, corrosion resistance and high temperature resistance.
l Easy disassembly and installation, the valve body is made of perspective material, convenient observation.
l Integrated wire rod stepping motor, high performance, long life, high strength repeated operation.
l The precision ceramic valve reciprocates and measures the size by adjusting the stroke length.
l No dynamic seals, no vulnerable parts, zero maintenance and maintenance cost.
l Anti-chemical reactions are compatible with most fluids.
Technical Parameters
Specification and Model | JKR-ZXS-A100μL | JKR-ZXS-A250μL | JKR-ZXS-A500μL | |
Pump valve material | Alumina / zirconia / silicon nitride (optional) | |||
（mm） Plunger diameter | 3.1 | 5.0 | 7.0 | |
(ul/step) Resolution | 0.05 | 0.12 | 0.25 | |
Full remove steps | 2000steps | |||
Remove per srep | 0.00635mm/srep | |||
Stroke accuracy | ±0.3‰ | |||
Outlet pressure | Max0.3Mpa | |||
Connection ports | M6，1/4-28UNF | |||
Power supply | 24VDC/500mA | |||
Note: the above models are close to our large shipments of the representative model products, welcome to order customized! For the 2D,3D installation size diagram, please contact our customer, sales or website for download.
