Ceramic plunger pipette pump series
Home > Product center > Ceramic plunger pipette pump series
Product center > Ceramic plunger pipette pump series

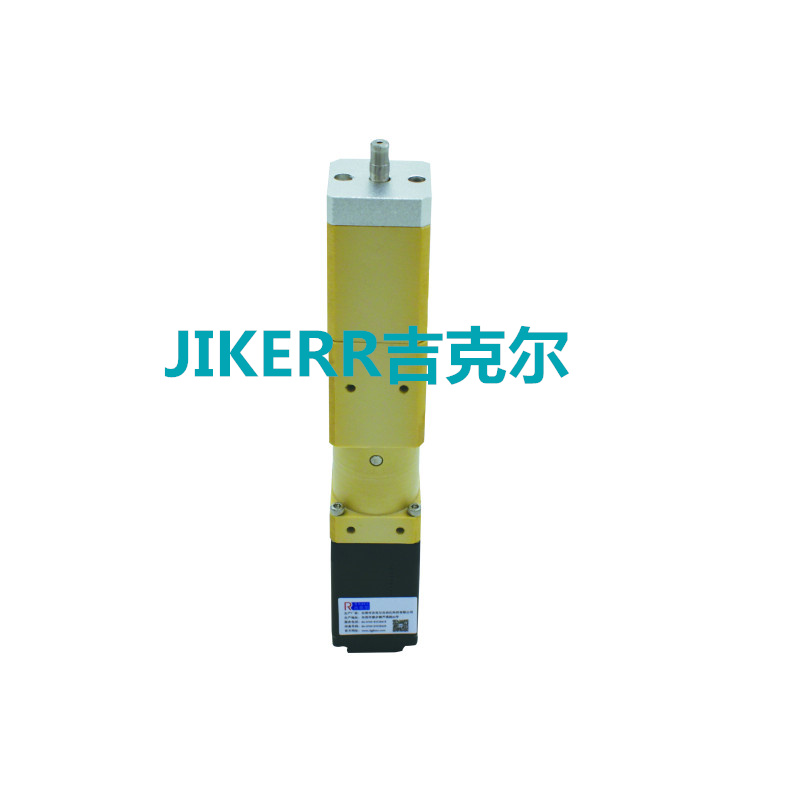

Automatic unloading pipette pump
Product performance：
l Precision ceramic piston cavity is used
l Non-contact suction and withdrawal are adopted, without cross contamination.
l Automatic resuction head.
l Precision wire rod motor reciprocating motion.
l Small volume, high precision, corrosion resistance, wear resistance, air tightness, and reliable consistency.
l No dynamic seals, no vulnerable parts, zero maintenance and maintenance cost.
Telephone：0769-83328418
Message feedbackPrevious：Liquid metering pump series
Next：no more
Detailed introduction
Widely used for： raw preparations, pharmaceutical, chemical, liquid workstation suction, liquid withdrawal and other precision quantitative packaging.
Product performance：
l Precision ceramic piston cavity is used
l Non-contact suction and withdrawal are adopted, without cross contamination.
l Automatic resuction head.
l Precision wire rod motor reciprocating motion.
l Small volume, high precision, corrosion resistance, wear resistance, air tightness, and reliable consistency.
l No dynamic seals, no vulnerable parts, zero maintenance and maintenance cost.
Technical Parameters
Specification and Model | JKR-ZDB-A50UL | JKR-ZDB-A100UL | JKR-ZDB-A300UL | JKR-ZDB-A500UL |
Measuremente | 50μL | 100μL | 250μL | 500μL |
Piston material | Alumina/zirconia | |||
Drive mode | Four-wire precision wire rod stepping motor | |||
Motor rotation speed | 1-180r/min | |||
Suction and drainage accuracy（CV） Precision of suction fluid | 2.0% | |||
Flow pressure | ＜0.30Mpa | |||
Travel | Max18mm | |||
Communication interface | RS232, RS485, only selected with motor drive ISC1000 | |||
Operating noise | <60 dBA for indoor use only | |||
Operating temperature and humidity | 15°C to 40°C and 20% to 95% RH at 40°C, no condensation | |||
Media humidity | 15°C to 40°C | |||
Power supply requirements | 24VDC500mA | |||
Note: the above models are close to our large shipments of the representative model products, welcome to order customized! For the 2D,3D installation size diagram, please contact our customer, sales or website for download.
