Ceramic plunger pipette pump series
Home > Product center > Ceramic plunger pipette pump series
Product center > Ceramic plunger pipette pump series

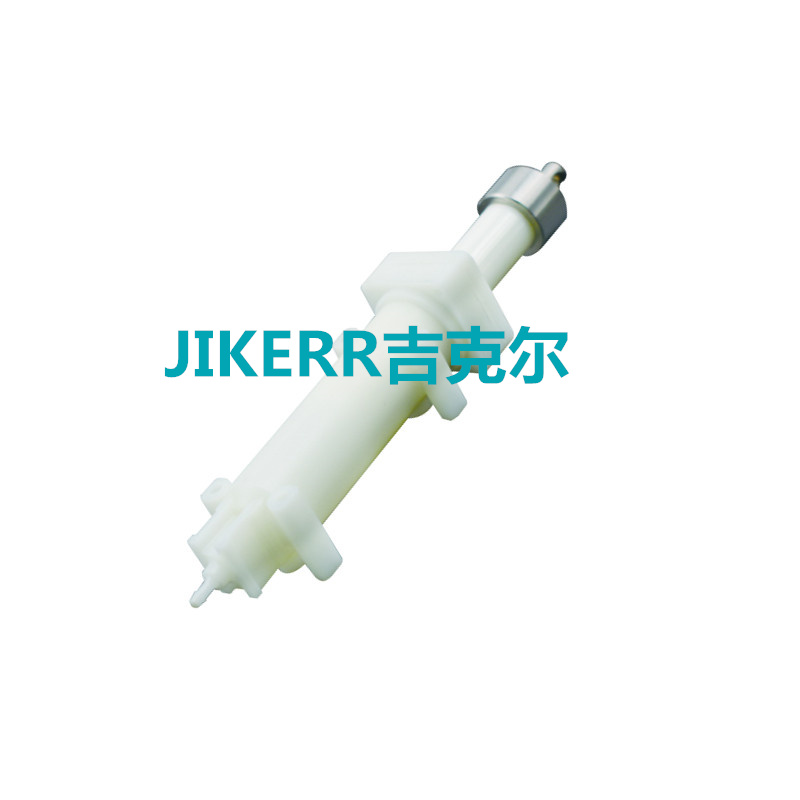

Ceramic syringe
Product performance：
l Compact in structure and small in size.
l Long travel, high precision, and maintenance-free.
l Ceramic column rod material is of long life.
l Chemical reactions are compatible with most fluids.
Telephone：0769-83328418
Message feedbackPrevious：no more
Detailed introduction
Widely used for： blood globe instrument, biochemical instrument, chemiluminescence and other analysis equipment application.
Product performance：
l Compact in structure and small in size.
l Long travel, high precision, and maintenance-free.
l Ceramic column rod material is of long life.
l Chemical reactions are compatible with most fluids.
Technical Parameters
Specification & Model | JKR-ZSB-A100μl | JKR-ZSB-A250μl | JKR-ZSB-A500μl | JKR-ZSB-A1000μl | JKR-ZSB-A2500μl | JKR-ZSB-A5000μl | JKR-ZSB-A10mL |
Maximum displacement | 100μl | 250μl | 500μl | 1000μl | 2500μl | 5000μl | 10mL |
Cylinder material | Alumina / zirconia / silicon nitride / sapphire (optional) | ||||||
Maximum Remove | MAX60mm | ||||||
Suction and drainage accuracy（CV） Adjustment mode | 2.0%( Design displacement precision for our company) | ||||||
Working pressur | 0.3Mpa | ||||||
Interface form | M6，1/4-28UNF | ||||||
Mediums | Pure water, weak (strong) acid, weak (strong), alkali, etc | ||||||
Service life (10,000 / time) | 100 to 2，000，000 times | ||||||
Note: the above models are close to our large shipments of the representative model products, welcome to order customized! For the 2D,3D installation size diagram, please contact our customer, sales or website for download.
