Precision ceramic piston pump valve series
Home > Product center > Precision ceramic piston pump valve series
Product center > Precision ceramic piston pump valve series

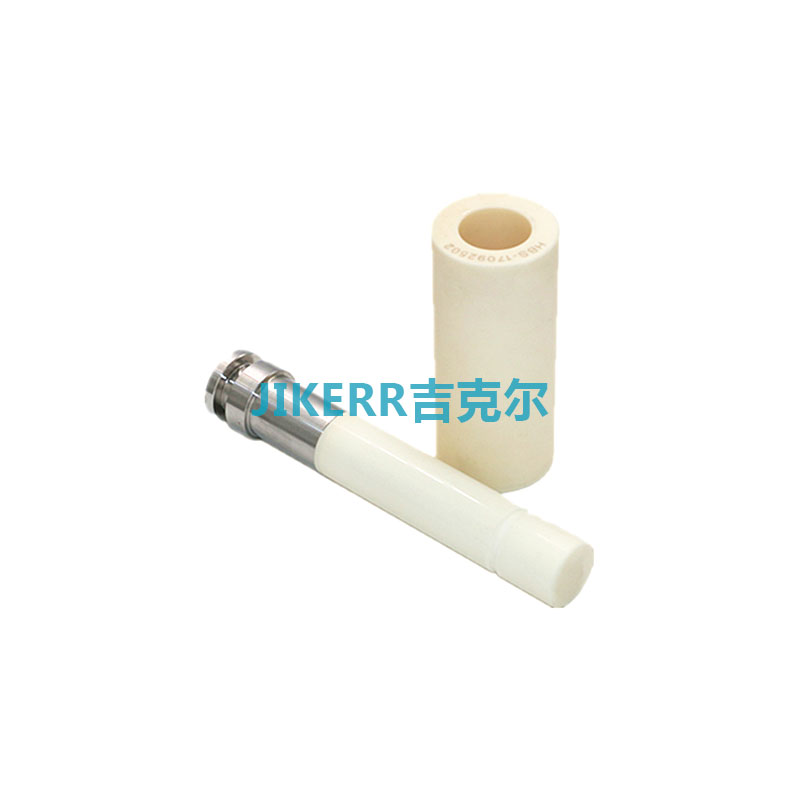

Vacuum filling ceramic cup
Performance Features:
l Anti-chemical reaction widely used in transportation of most chemical media.
l Precisely matched grinding process, matching clearance ≤0.003mm.
l Resistant to acid and alkali corrosion.
l Wear resistance—millions of operations have almost no wear and long service life.
l High intensity and repeatable operation.
l The material is dense, and the filling precision is high.
l Can completely replace imported ceramics.
Telephone：0769-83328418
Message feedbackPrevious：Ceramic rotary valve series
Detailed introduction
Application fields: Suitable for vacuum injection of lithium battery injection machines or vacuum injections of other fluids;
Performance Features:
l Anti-chemical reaction widely used in transportation of most chemical media.
l Precisely matched grinding process, matching clearance ≤0.003mm.
l Resistant to acid and alkali corrosion.
l Wear resistance—millions of operations have almost no wear and long service life.
l High intensity and repeatable operation.
l The material is dense, and the filling precision is high.
l Can completely replace imported ceramics.
Technical Parameters
Specification & Model | Material | Diameter of pump core | Matching accuracy | Measurement accuracy |
JKR-TCF03 | Alumina / Zirconium | ?3mm | ≤3μm | ≤0.5% |
JKR-TCF06 | Alumina / Zirconium | ?6mm | ≤3μm | ≤0.5% |
JKR-TCF08 | Alumina / Zirconium | ?8mm | ≤3μm | ≤0.5% |
JKR-TCF10 | Alumina / Zirconium | ?10mm | ≤3μm | ≤0.5% |
JKR-TCF13 | Alumina / Zirconium | ?13mm | ≤3μm | ≤0.5% |
JKR-TCF14 | Alumina / Zirconium | ?14mm | ≤3μm | ≤0.5% |
JKR-TCF16 | Alumina / Zirconium | ?16mm | ≤3μm | ≤0.5% |
JKR-TCF18 | Alumina / Zirconium | ?18mm | ≤3μm | ≤0.5% |
JKR-TCF20 | Alumina / Zirconium | ?20mm | ≤3μm | ≤0.5% |
JKR-TCF25 | Alumina / Zirconium | ?25mm | ≤3μm | ≤0.5% |
JKR-TCF30 | Alumina / Zirconium | ?30mm | ≤3μm | ≤0.5% |
JKR-TCF35 | Alumina / Zirconium | ?35mm | ≤3μm | ≤0.5% |
JKR-TCF40 | Alumina / Zirconium | ?40mm | ≤3μm | ≤0.5% |
External dimensions
Note: Ji Kerr can customize or replace any domestic or foreign brands for you. The shape and size can be customized according to the needs of the design and processing.
